ACM9070-701-2PL-TL01

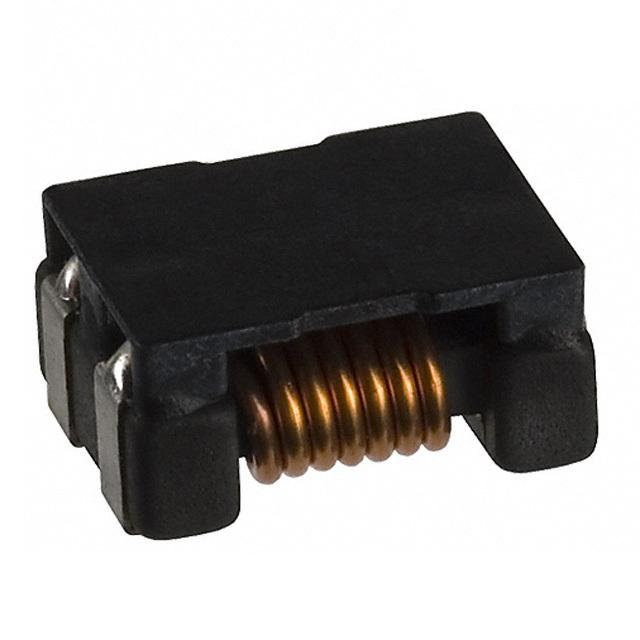

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM9070-701-2PL-TL01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM9070-701-2PL-TL01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM9070-701-2PL-TL01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 5A 2LN 700 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | 4000 pcs | 5600 pcs | |
|---|---|---|---|---|---|
| $0.314 | $0.304 | $0.295 | $0.285 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACM9070-701-2PL-TL01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 5A 2LN 700 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80089 pcs | Data sheet | ACM9070 Series, Commercial |
| Category | Filters | Voltage Rating - DC | 80V |
| Voltage Rating - AC | - | Size / Dimension | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Series | ACM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 445-2216-2 ACM9070-701-2PL ACM9070-701-2PL-TL ACM9070-701-2PLT ACM90707012PLTL01 |
Operating Temperature | -40°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance @ Frequency | 700 Ohms @ 100MHz |
| Height (Max) | 0.177" (4.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 5A DCR 10 mOhm |
| DC Resistance (DCR) (Max) | 10 mOhm | Current Rating (Max) | 5A |
| Approvals | - |
