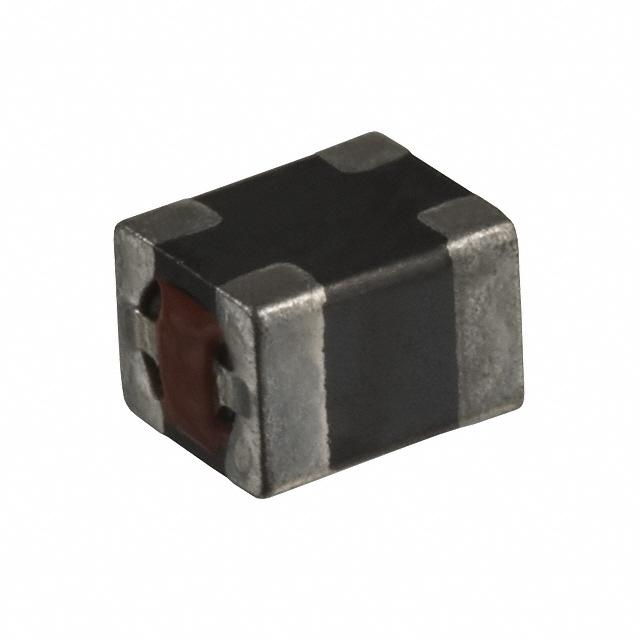

ACM3225-800-2P-T001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM3225-800-2P-T001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM3225-800-2P-T001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM3225-800-2P-T001 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 400MA 2LN 80 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACM3225-800-2P-T001 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 400MA 2LN 80 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3961 pcs | Data sheet | ACM(2012,2520,3225,4532) Series, General |
| Category | Filters | Voltage Rating - DC | 20V |
| Voltage Rating - AC | - | Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Series | ACM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1210 (3225 Metric), 4 Leads |
| Other Names | 445-2030-2 ACM3225-800-2P ACM3225-8002PT001 ACM3225-8002PT001-ND |
Operating Temperature | -25°C ~ 85°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 80 Ohms @ 100MHz | Height (Max) | 0.091" (2.30mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 80 Ohms @ 100MHz 400mA DCR 150 mOhm | DC Resistance (DCR) (Max) | 150 mOhm |
| Current Rating (Max) | 400mA | Approvals | - |
