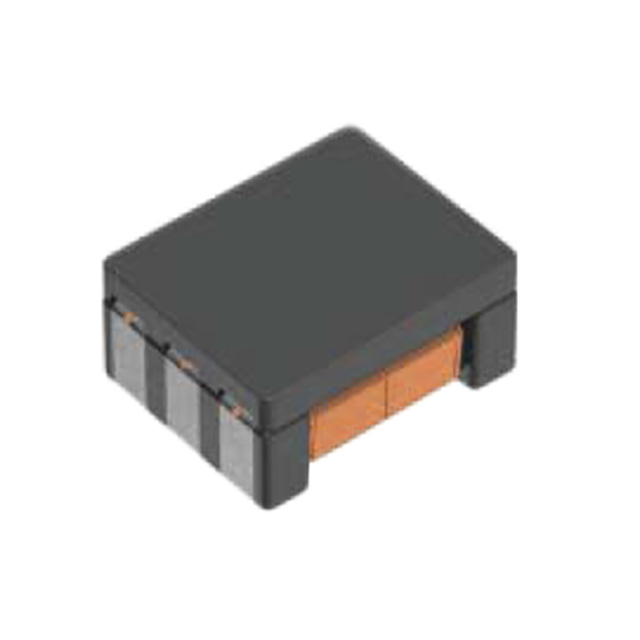

ACM2520-801-3P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM2520-801-3P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM2520-801-3P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM2520-801-3P |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CMC 150MA 3LN 800 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.141 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACM2520-801-3P | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | CMC 150MA 3LN 800 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140352 pcs | Data sheet | ACM(2012,2520,3225,4532) Series, General |
| Category | Filters | Voltage Rating - DC | 20V |
| Voltage Rating - AC | - | Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Series | ACM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1008 (2520 Metric), 6 PC Pad |
| Operating Temperature | -25°C ~ 85°C | Number of Lines | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 25 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 800 Ohms @ 100MHz | Height (Max) | 0.051" (1.30mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 3 Line Common Mode Choke Surface Mount 800 Ohms @ 100MHz 150mA DCR 1.6 Ohm | DC Resistance (DCR) (Max) | 1.6 Ohm |
| Current Rating (Max) | 150mA | Approvals | - |
