ACM1513-551-2PL-T

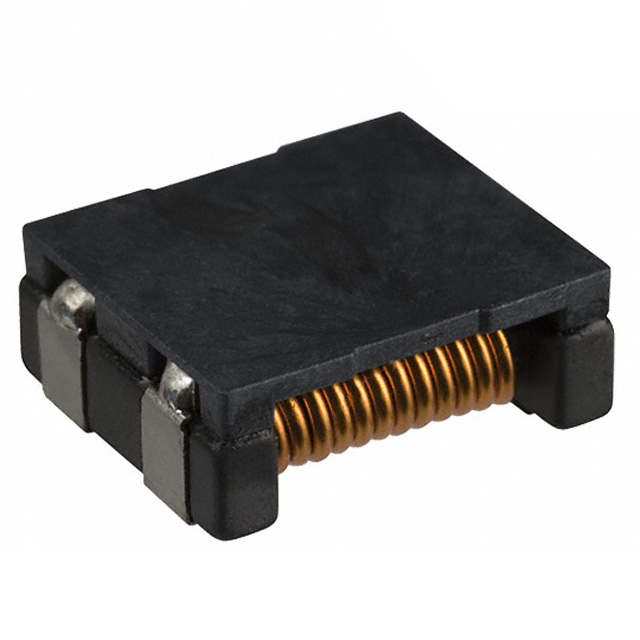

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM1513-551-2PL-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM1513-551-2PL-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM1513-551-2PL-T |
|---|---|
| Manufacturer | TDK Corporation |
| Description | COMMON MODE CHOKE 10A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | ACM1513-551-2PL-T | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 10A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5121 pcs | Data sheet | |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.591" L x 0.512" W (15.00mm x 13.00mm) |
| Series | ACM | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 PC Pad |
| Operating Temperature | -40°C ~ 85°C | Number of Lines | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.236" (6.00mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 10A DCR 4 mOhm | DC Resistance (DCR) (Max) | 4 mOhm |
| Current Rating (Max) | 10A | Approvals | - |
