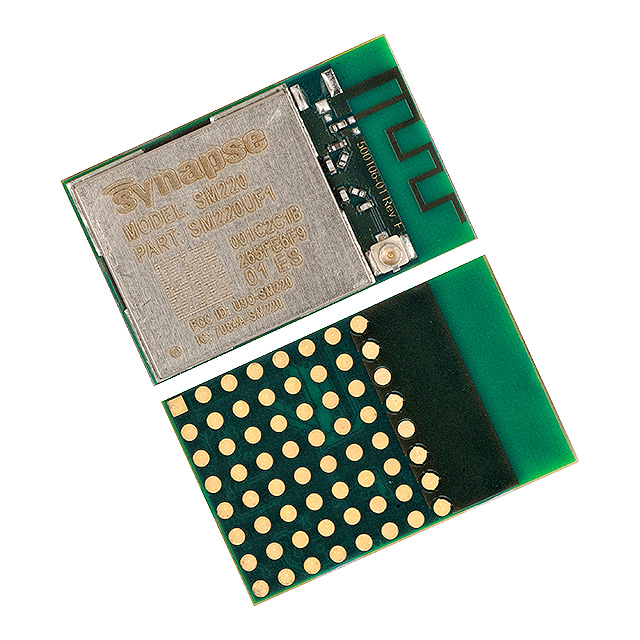

SM220UF1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM220UF1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM220UF1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM220UF1 |
|---|---|
| Manufacturer | Synapse Wireless |
| Description | RF TXRX MOD 802.15.4 CHIP + U.FL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $6.864 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM220UF1 | Manufacturer | Synapse Wireless |
|---|---|---|---|
| Description | RF TXRX MOD 802.15.4 CHIP + U.FL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4557 pcs | Data sheet | SM220 Module Datasheet |
| Category | RF/IF and RFID | Voltage - Supply | 2 V ~ 3.6 V |
| Utilized IC / Part | - | Series | SNAP® RF Engine® |
| Serial Interfaces | I²C, JTAG, SPI, UART | Sensitivity | -103dBm |
| RF Family/Standard | 802.15.4 | Protocol | - |
| Power - Output | 20dBm | Packaging | Tape & Reel (TR) |
| Package / Case | 64-SMD Module | Other Names | 746-1053-2 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Modulation | DSSS, O-QPSK |
| Memory Size | 128kB Flash, 4kB EEPROM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | 2.4GHz | Data Rate | 2Mbps |
| Current - Transmitting | 55mA ~ 150mA | Current - Receiving | 7.8mA ~ 22mA |
| Antenna Type | Integrated, Chip + U.FL |
