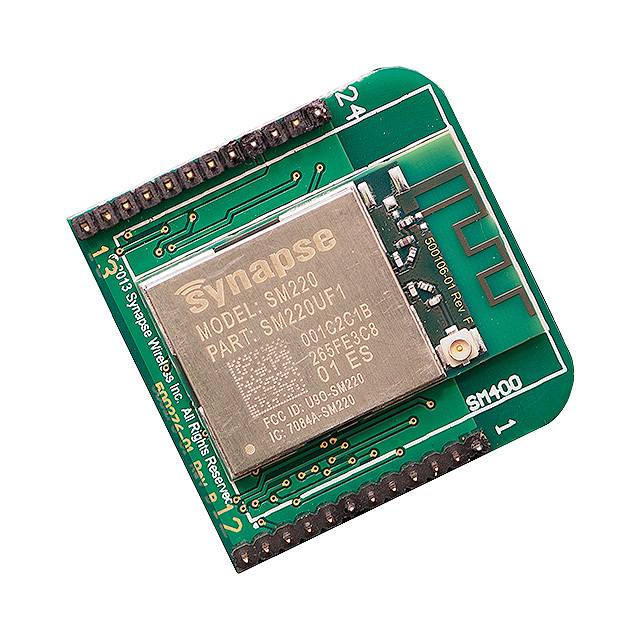

RF220UF1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RF220UF1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RF220UF1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RF220UF1 |
|---|---|
| Manufacturer | Synapse Wireless |
| Description | RF TXRX MOD 802.15.4 CHIP + U.FL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $13.891 | $12.951 | $12.013 | $11.262 | $10.511 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | RF220UF1 | Manufacturer | Synapse Wireless |
|---|---|---|---|
| Description | RF TXRX MOD 802.15.4 CHIP + U.FL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3556 pcs | Data sheet | RF220 Series Datasheet |
| Category | RF/IF and RFID | Voltage - Supply | 2 V ~ 3.6 V |
| Utilized IC / Part | - | Series | SNAP® RF Engine® |
| Serial Interfaces | SPI, UART | Sensitivity | -103dBm |
| RF Family/Standard | 802.15.4 | Protocol | - |
| Power - Output | 20dBm | Packaging | Tray |
| Package / Case | 24-DIP Module | Other Names | 745-1054 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Modulation | - |
| Memory Size | 128kB Flash, 58kB RAM | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 2.4GHz |
| Data Rate | 2Mbps | Current - Transmitting | 150mA |
| Current - Receiving | 22mA | Antenna Type | Integrated, Chip + U.FL |
