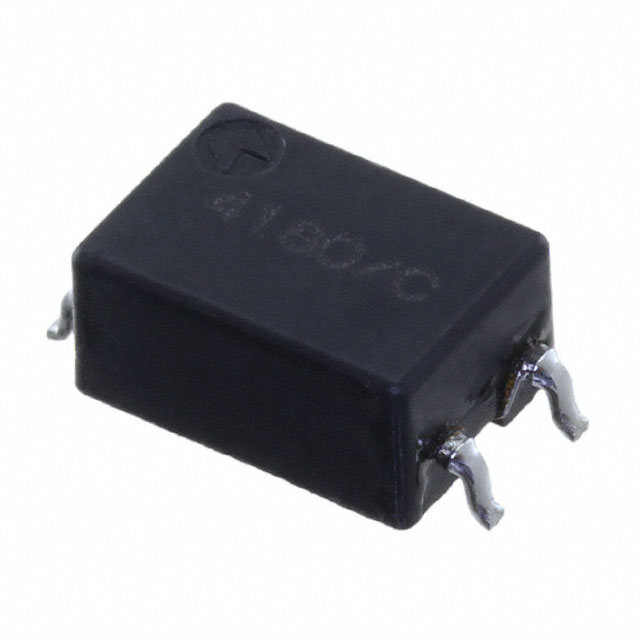

ESMIT-4180/C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESMIT-4180/C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESMIT-4180/C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESMIT-4180/C |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | XFMR MODEM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 5000 pcs | 12500 pcs | |
|---|---|---|---|---|---|
| $0.41 | $0.297 | $0.262 | $0.253 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESMIT-4180/C | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | XFMR MODEM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90631 pcs | Data sheet | ESMIT-4180/C Datasheet |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 3750Vrms | Turns Ratio - Primary:Secondary | - |
| Termination Style | Gull Wing | Size / Dimension | 0.280" L x 0.205" W (7.10mm x 5.20mm) |
| Series | ESMIT | Return Loss | - |
| Power Level | - | Packaging | Tape & Reel (TR) |
| Other Names | 308-2379-2 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Impedance - Secondary (Ohms) | - |
| Impedance - Primary (Ohms) | - | Height - Seated (Max) | 0.138" (3.50mm) |
| Frequency Response | - | Frequency Range | - |
| DC Resistance (DCR) - Secondary | 250 mOhm | DC Resistance (DCR) - Primary | 250 mOhm |
| Approvals | - |
