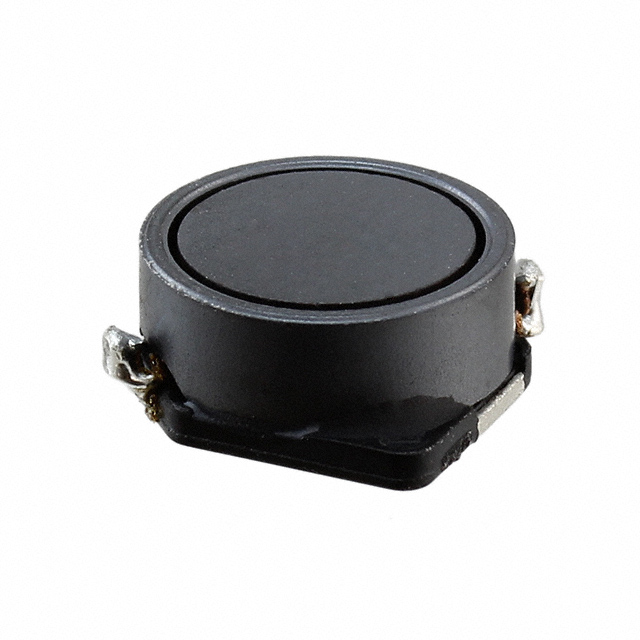

CDRR105NP-100MC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRR105NP-100MC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRR105NP-100MC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRR105NP-100MC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 10UH 3A 47.5 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.238 | $0.211 | $0.205 | $0.198 | $0.191 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRR105NP-100MC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 10UH 3A 47.5 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123466 pcs | Data sheet | CDRR105 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Shielding | Shielded |
| Series | CDRR105 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-1666-2 CDRR105NP100MC |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.189" (4.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 10µH Shielded Inductor 3A 47.5 mOhm Max Nonstandard | DC Resistance (DCR) | 47.5 mOhm Max |
| Current Rating | 3A | Current - Saturation | 2.48A |
