CDRH5D16F/LDNP-2R2NC

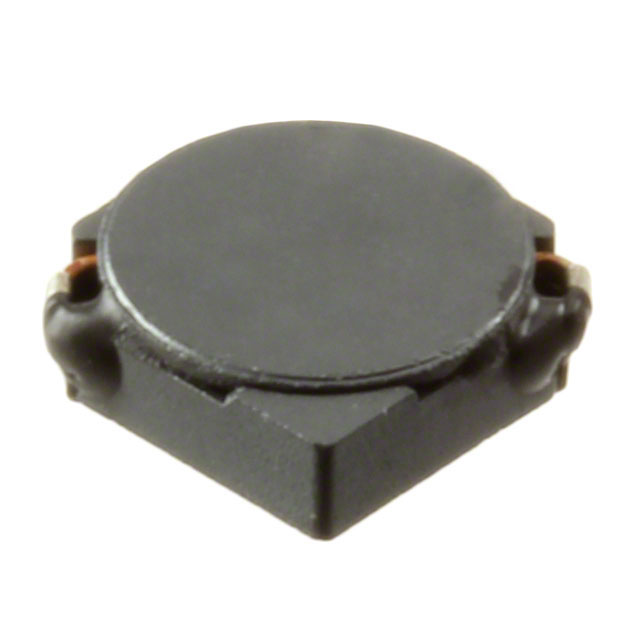

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRH5D16F/LDNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRH5D16F/LDNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRH5D16F/LDNP-2R2NC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 2.2UH 3.8A 27 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.154 | $0.149 | $0.144 | $0.14 | $0.135 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRH5D16F/LDNP-2R2NC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 3.8A 27 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157898 pcs | Data sheet | CDRH5D16F/LD Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | Shielding | Shielded |
| Series | CDRH5D16F/LD | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-2047-2 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.071" (1.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Shielded Inductor 3.8A 27 mOhm Max Nonstandard | DC Resistance (DCR) | 27 mOhm Max |
| Current Rating | 3.8A | Current - Saturation | 1.8A |
