CDRH4D22HPNP-2R2NC

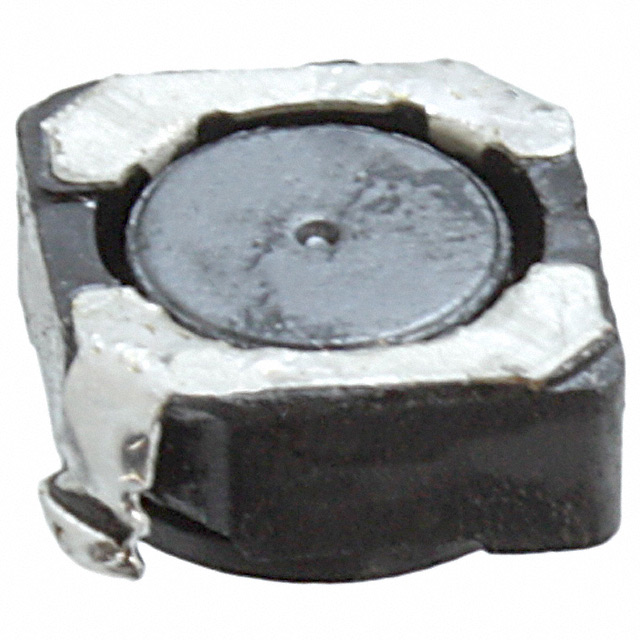

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRH4D22HPNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRH4D22HPNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRH4D22HPNP-2R2NC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 2.2UH 2.4A 44.3 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.15 | $0.141 | $0.137 | $0.132 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRH4D22HPNP-2R2NC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 2.4A 44.3 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 171984 pcs | Data sheet | CDRH4D22/HP |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) | Shielding | Shielded |
| Series | CDRH4D22/HP | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-1657-2 CDRH4D22HPNP2R2NC |
| Operating Temperature | -40°C ~ 100°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.094" (2.40mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Shielded Inductor 2.4A 44.3 mOhm Max Nonstandard | DC Resistance (DCR) | 44.3 mOhm Max |
| Current Rating | 2.4A | Current - Saturation | 3.2A |
