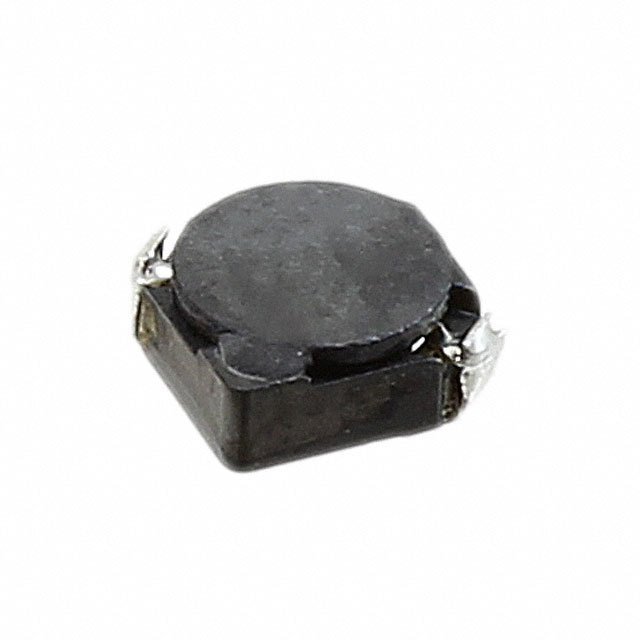

CDRH3D16/HPNP-2R2NC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRH3D16/HPNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRH3D16/HPNP-2R2NC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRH3D16/HPNP-2R2NC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 2.2UH 2.3A 59 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.282 | $0.248 | $0.177 | $0.149 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRH3D16/HPNP-2R2NC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 2.2UH 2.3A 59 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160879 pcs | Data sheet | CDRH3D16/HP Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | CDRH3D16/HP | Ratings | - |
| Q @ Freq | - | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | 308-1980-6 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.071" (1.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 2.2µH Shielded Inductor 2.3A 59 mOhm Max Nonstandard | DC Resistance (DCR) | 59 mOhm Max |
| Current Rating | 2.3A | Current - Saturation | 1.75A |
