CDRH3D14NP-100NC

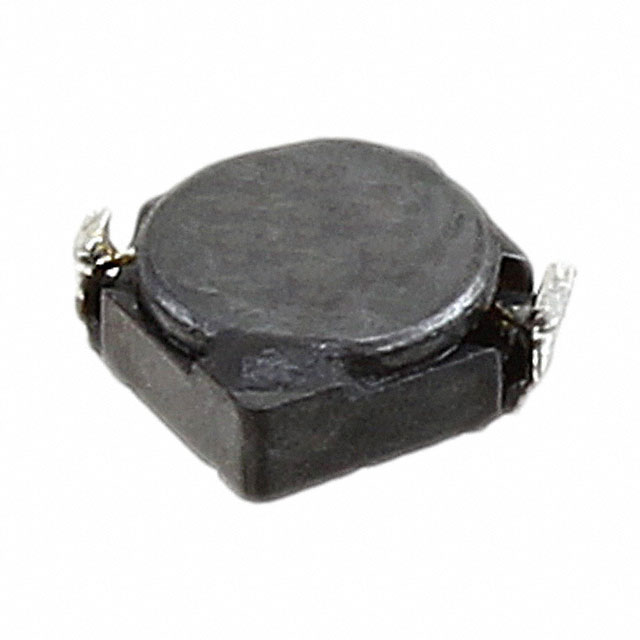

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRH3D14NP-100NC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRH3D14NP-100NC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRH3D14NP-100NC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 10UH 690MA 262 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.108 | $0.102 | $0.099 | $0.095 | $0.092 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRH3D14NP-100NC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 10UH 690MA 262 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214448 pcs | Data sheet | CDRH3D14 Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | CDRH3D14 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-1974-2 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.059" (1.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 10µH Shielded Inductor 690mA 262 mOhm Max Nonstandard | DC Resistance (DCR) | 262 mOhm Max |
| Current Rating | 690mA | Current - Saturation | 750mA |
