Home > Products > Inductors, Coils, Chokes > Fixed Inductors > CDR74NP-101MC

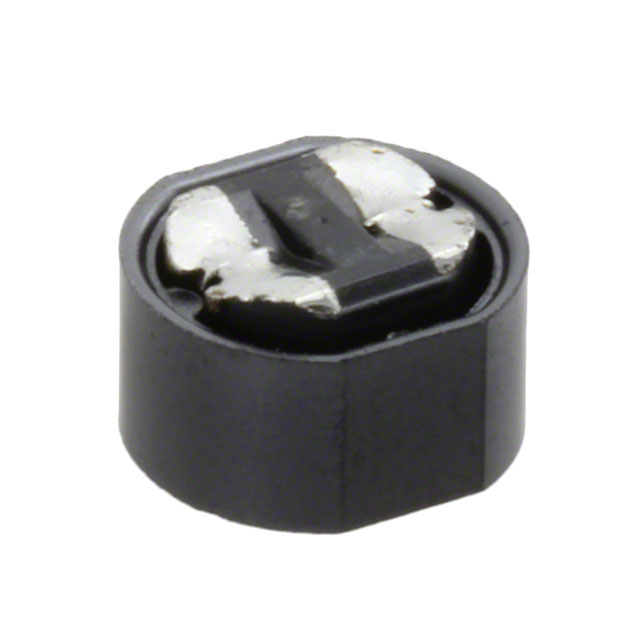

CDR74NP-101MC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDR74NP-101MC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CDR74NP-101MC
Manufacturer	Sumida Corporation
Description	FIXED IND 100UH 520MA 540 MOHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4818 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CDR74NP-101MC	Manufacturer	Sumida Corporation
Description	FIXED IND 100UH 520MA 540 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4818 pcs	Data sheet	CDR74 Series
Category	Inductors, Coils, Chokes	Type	-
Tolerance	-15%, +20%	Supplier Device Package	-
Size / Dimension	0.303" L x 0.280" W (7.70mm x 7.10mm)	Shielding	Shielded
Series	CDR74	Ratings	-
Q @ Freq	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	308-1900-6
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	1kHz
Inductance	100µH	Height - Seated (Max)	0.191" (4.85mm)
Frequency - Self Resonant	8.59MHz	Detailed Description	100µH Shielded Inductor 520mA 540 mOhm Max Nonstandard
DC Resistance (DCR)	540 mOhm Max	Current Rating	520mA
Current - Saturation	-
