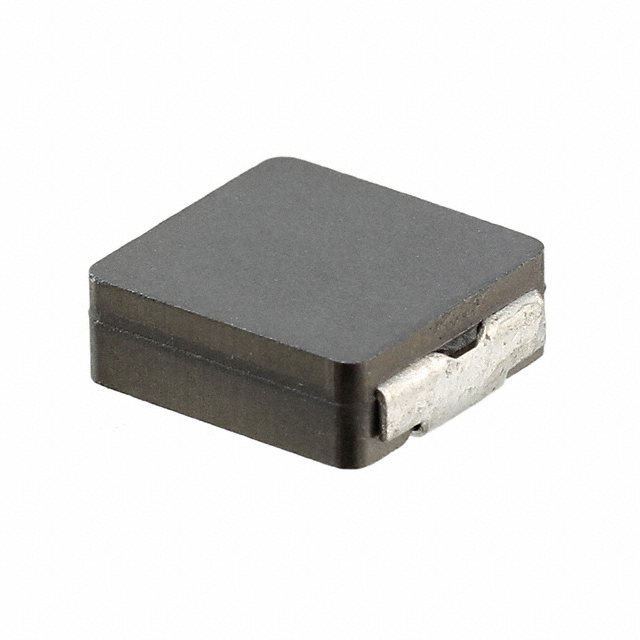

CDMC104NP-R56M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDMC104NP-R56M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDMC104NP-R56M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDMC104NP-R56M |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 560NH 21A 1.48 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.397 | $0.362 | $0.35 | $0.339 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDMC104NP-R56M | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 560NH 21A 1.48 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64493 pcs | Data sheet | CDMC104 |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Shielding | Shielded |
| Series | CDMC104 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-1617-2 CDMC104NPR56M |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Metal Composite |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 560nH |
| Height - Seated (Max) | 0.157" (4.00mm) | Frequency - Self Resonant | - |
| Detailed Description | 560nH Shielded Inductor 21A 1.48 mOhm Nonstandard | DC Resistance (DCR) | 1.48 mOhm |
| Current Rating | 21A | Current - Saturation | 22A |
