Home > Products > Inductors, Coils, Chokes > Arrays, Signal Transformers > CDEPI106NP-220-S

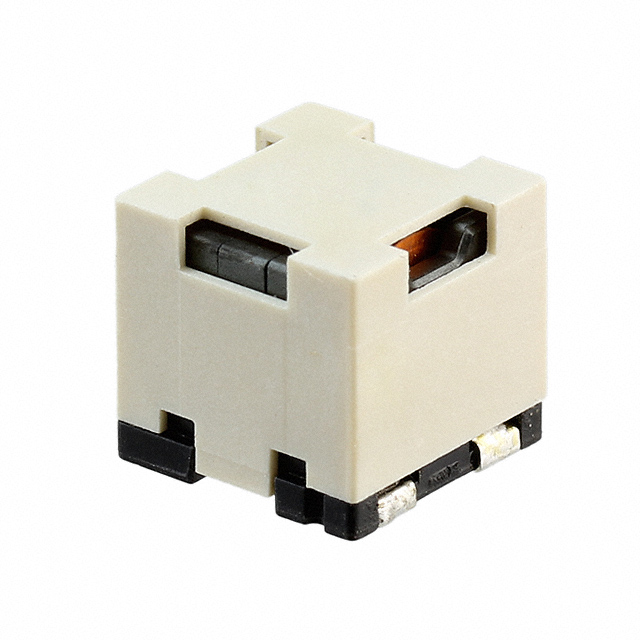

CDEPI106NP-220-S

CDEPI106NP-220-S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDEPI106NP-220-S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CDEPI106NP-220-S
Manufacturer	Sumida Corporation
Description	INDUCT ARRAY 2 COIL 11UH SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 84814 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$0.454

Product parameter
Data sheet

Product parameter

Part Number	CDEPI106NP-220-S	Manufacturer	Sumida Corporation
Description	INDUCT ARRAY 2 COIL 11UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84814 pcs	Data sheet	CDEPI106
Category	Inductors, Coils, Chokes	Tolerance	-
Size / Dimension	0.433" L x 0.433" W (11.00mm x 11.00mm)	Shielding	Shielded
Series	CDEPI106	Ratings	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	308-1615-2 CDEPI106NP220S	Operating Temperature	-40°C ~ 105°C
Number of Coils	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	44µH	Inductance - Connected In Parallel	11µH
Height	0.413" (10.50mm)	Detailed Description	Shielded 2 Coil Inductor Array 44µH Inductance - Connected in Series 11µH Inductance - Connected in Parallel 11.5 mOhm DC Resistance (DCR) - Parallel 16A Nonstandard
DC Resistance (DCR) - Series	46 mOhm	DC Resistance (DCR) - Parallel	11.5 mOhm
Current Saturation - Series	2.2A	Current Saturation - Parallel	4.4A
Current Rating - Series	2A	Current Rating - Parallel	16A
