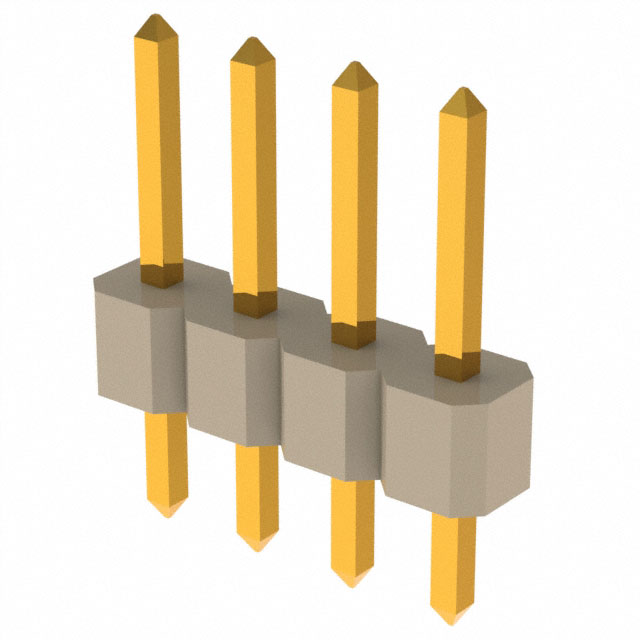

YMC04SAAN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy YMC04SAAN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy YMC04SAAN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | YMC04SAAN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | HI-TEMP CONN HDR .100 SNGL 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | YMC04SAAN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | HI-TEMP CONN HDR .100 SNGL 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5266 pcs | Data sheet | P(G,R,A)xCxxSxxN Drawing, Straight |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.450" (11.43mm) |
| Other Names | S9665-04 | Operating Temperature | -65°C ~ 250°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyetheretherketone (PEEK) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Tan | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
