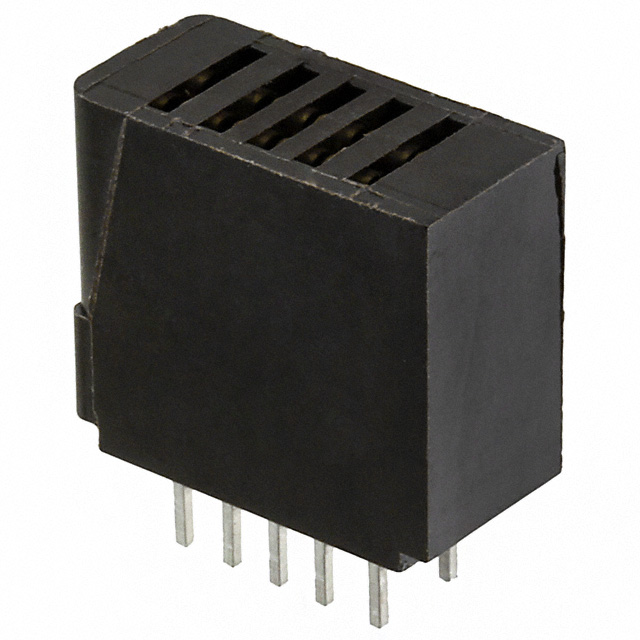

TCC05DCSN-S1403
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCC05DCSN-S1403 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCC05DCSN-S1403 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCC05DCSN-S1403 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN TRANSIST TO-220/TO-247 5POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.605 | $5.096 | $4.968 | $4.586 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.331 | $3.949 | $3.694 | $3.389 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCC05DCSN-S1403 | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN TRANSIST TO-220/TO-247 5POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10691 pcs | Data sheet | TCC05DCSN-S1403 Drawing |
| Category | Connectors, Interconnects | Type | Transistor, TO-220 and TO-247 |
| Termination Post Length | 0.190" (4.83mm) | Termination | Solder |
| Series | - | Pitch - Post | - |
| Pitch - Mating | - | Packaging | Bulk |
| Other Names | S9635 | Operating Temperature | -65°C ~ 175°C |
| Number of Positions or Pins (Grid) | 5 (Rectangular) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Features | - |
| Current Rating | 3A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
