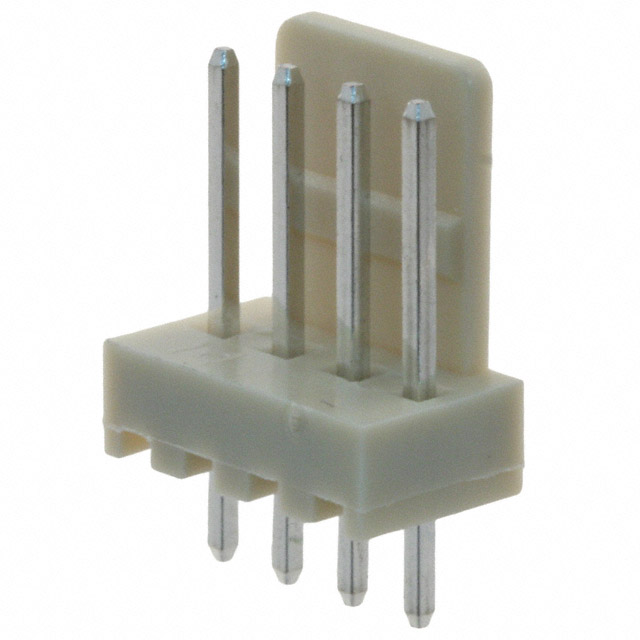

SWR25X-NRTC-S04-ST-BA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWR25X-NRTC-S04-ST-BA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWR25X-NRTC-S04-ST-BA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWR25X-NRTC-S04-ST-BA |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HDR .100" SNGL PCB 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.069 | $0.064 | $0.044 | $0.037 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.031 | $0.027 | $0.025 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SWR25X-NRTC-S04-ST-BA | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR .100" SNGL PCB 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 918833 pcs | Data sheet | SWR25X-NRTC-Sxx-ST-BA Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | SWR25X |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.559" (14.20mm) |
| Other Names | S9410 SWR25XNRTCS04STBA |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.449" (11.40mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | 5A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.299" (7.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
