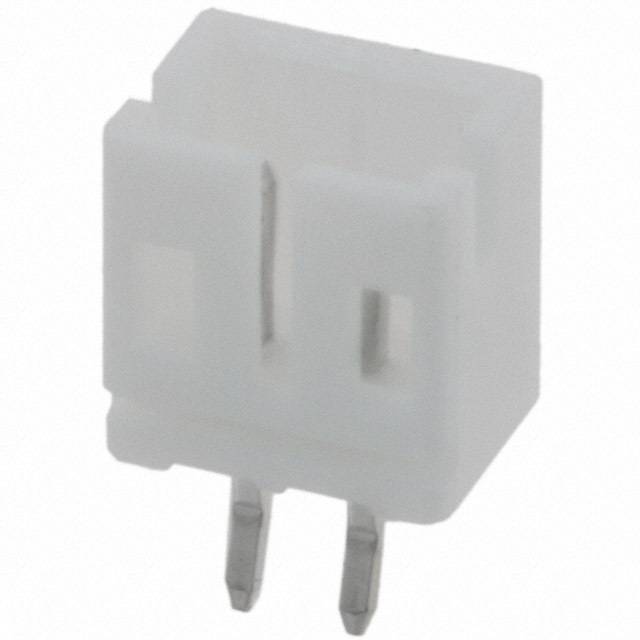

SWR201-NRTN-S02-SA-WH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWR201-NRTN-S02-SA-WH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWR201-NRTN-S02-SA-WH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWR201-NRTN-S02-SA-WH |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HDR 2.0MM SNGL PCB 2POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.04 | $0.037 | $0.023 | $0.019 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.016 | $0.014 | $0.014 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SWR201-NRTN-S02-SA-WH | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR 2.0MM SNGL PCB 2POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1632361 pcs | Data sheet | SWR201-NRTN-Sxx-SA-WH DrawingSWR201 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SWR201 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | S9463 SWR201NRTNS02SAWH |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.236" (6.00mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 2 position 0.079" (2.00mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
