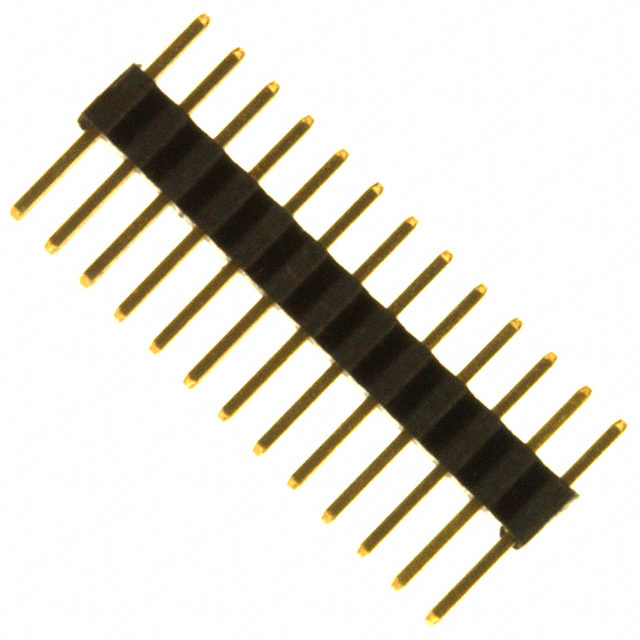

SMH150-LPSE-D13-ST-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH150-LPSE-D13-ST-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMH150-LPSE-D13-ST-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMH150-LPSE-D13-ST-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 26POS 1MM DL AU T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $1.103 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMH150-LPSE-D13-ST-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 26POS 1MM DL AU T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30887 pcs | Data sheet | SMH150-LPxE-Dyy-ST-BK DrawingSMH100-LPPE-S10-ST-BK |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | SMH |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Overall Contact Length | 0.228" (5.80mm) |
| Other Names | S9256 | Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 26 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | 0.071" (1.80mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
