Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > SMH101-LPSE-D36-SP-BK

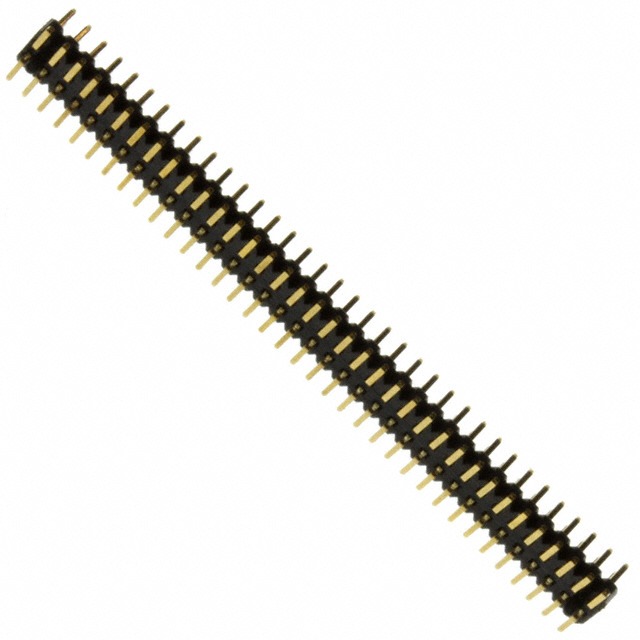

SMH101-LPSE-D36-SP-BK

SMH101-LPSE-D36-SP-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH101-LPSE-D36-SP-BK with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SMH101-LPSE-D36-SP-BK
Manufacturer Sullins Connector Solutions
Description CONN HEADER 72POS 1MM DL AU SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 10191 pcs
Reference Price
(In US Dollars)		1000 pcs
$3.386

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$3.386

Product parameter

Part Number SMH101-LPSE-D36-SP-BK Manufacturer Sullins Connector Solutions
Description CONN HEADER 72POS 1MM DL AU SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 10191 pcs Data sheet SMH10x-LPxE-Dyy-Sz-BK Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board
Shrouding Unshrouded Series SMH
Row Spacing - Mating 0.039" (1.00mm) Pitch - Mating 0.039" (1.00mm)
Packaging Tube Overall Contact Length -
Other Names S9226 Operating Temperature -40°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 72 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 4 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Liquid Crystal Polymer (LCP)
Insulation Height 0.039" (1.00mm) Insulation Color Black
Ingress Protection - Features Board Guide
Fastening Type Push-Pull Detailed Description Connector Header Surface Mount 72 position 0.039" (1.00mm)
Current Rating 1A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post - Contact Length - Mating 0.065" (1.65mm)
Contact Finish Thickness - Post 10.0µin (0.25µm) Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold Contact Finish - Mating Gold
Connector Type Header Applications -
