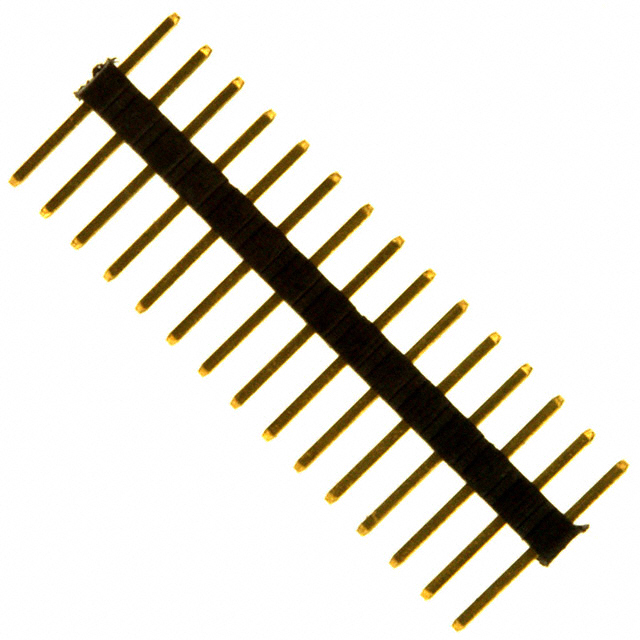

SMH100-LPSE-S15-ST-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH100-LPSE-S15-ST-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMH100-LPSE-S15-ST-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMH100-LPSE-S15-ST-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 15POS 1MM STR T/H AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.081 | $1.038 | $0.865 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.735 | $0.627 | $0.625 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMH100-LPSE-S15-ST-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 15POS 1MM STR T/H AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57684 pcs | Data sheet | SMH100-LPxE-Syy-ST-BKSMH100-LPPE-S10-ST-BK |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | SMH |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.209" (5.30mm) |
| Other Names | S9215 SMH100LPSES15STBK |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.039" (1.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 15 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | 0.071" (1.80mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
