Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > SMH100-LPSE-D20-ST-BK

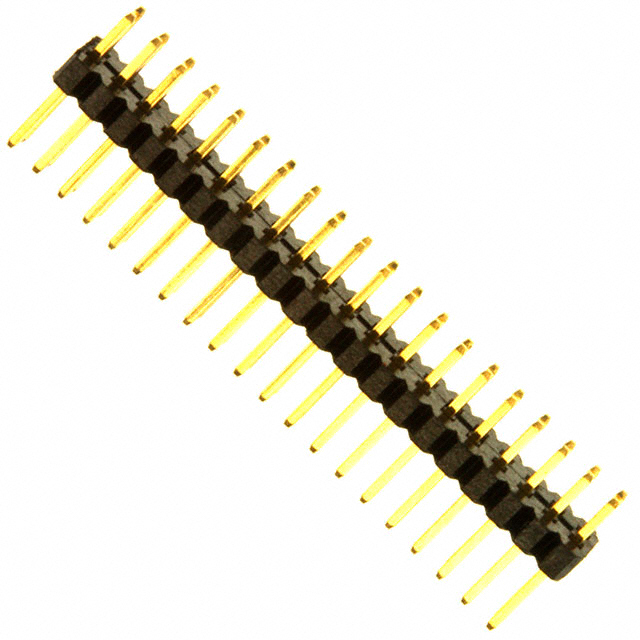

SMH100-LPSE-D20-ST-BK

SMH100-LPSE-D20-ST-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH100-LPSE-D20-ST-BK with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SMH100-LPSE-D20-ST-BK
Manufacturer Sullins Connector Solutions
Description CONN HEADER 40POS 1MM DL AU T/H
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 12944 pcs
Reference Price
(In US Dollars)		1 pcs
$2.607

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.607

Product parameter

Part Number SMH100-LPSE-D20-ST-BK Manufacturer Sullins Connector Solutions
Description CONN HEADER 40POS 1MM DL AU T/H Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 12944 pcs Data sheet SMH100-LPxE-Dyy-ST-BK DrawingSMH100-LPPE-S10-ST-BK
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Board
Shrouding Unshrouded Series SMH
Row Spacing - Mating 0.039" (1.00mm) Pitch - Mating 0.039" (1.00mm)
Packaging Bulk Overall Contact Length 0.209" (5.30mm)
Other Names S9239 Operating Temperature -40°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 40 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 4 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Liquid Crystal Polymer (LCP)
Insulation Height 0.039" (1.00mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Push-Pull Detailed Description Connector Header Through Hole 40 position 0.039" (1.00mm)
Current Rating 1A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post 0.098" (2.50mm) Contact Length - Mating 0.071" (1.80mm)
Contact Finish Thickness - Post 10.0µin (0.25µm) Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold Contact Finish - Mating Gold
Connector Type Header Applications -
