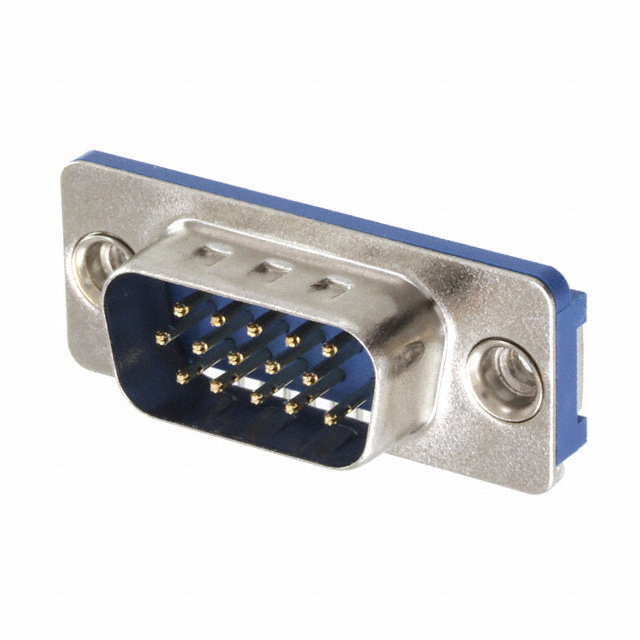

SDS224-PRW1-M15-SN13-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDS224-PRW1-M15-SN13-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDS224-PRW1-M15-SN13-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDS224-PRW1-M15-SN13-2 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN DSUB HD PLUG 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDS224-PRW1-M15-SN13-2 | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5491 pcs | Data sheet | SDS224-PRWy-y15-SNyy-y Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | 224 | Packaging | Tray |
| Other Names | S9567 SDS224PRW1M15SN132 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Grounding Indents |
| Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | Stamped | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub, High Density | Color | Blue |
| Backset Spacing | 0.063" (1.60mm) |
