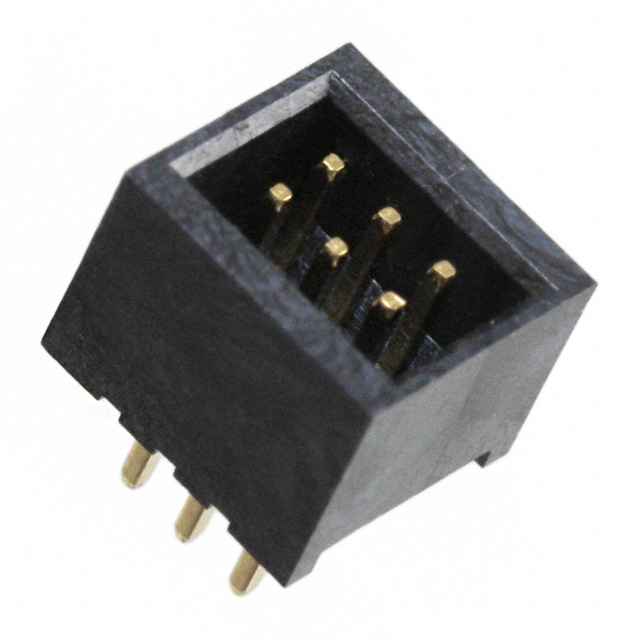

SBH51-LPSE-D03-ST-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBH51-LPSE-D03-ST-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBH51-LPSE-D03-ST-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBH51-LPSE-D03-ST-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 6POS 1MM GOLD VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 135 pcs | ||
|---|---|---|---|---|---|
| $0.465 | $0.422 | $0.362 | |||
| 540 pcs | 1080 pcs | 5130 pcs | |||
| $0.301 | $0.258 | $0.249 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBH51-LPSE-D03-ST-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 6POS 1MM GOLD VERT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91654 pcs | Data sheet | SBH51-LPxE-Dxx-ST-BK Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | SBH51 |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | S9362 SBH51LPSED03STBK SS9362 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.134" (3.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.039" (1.00mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
