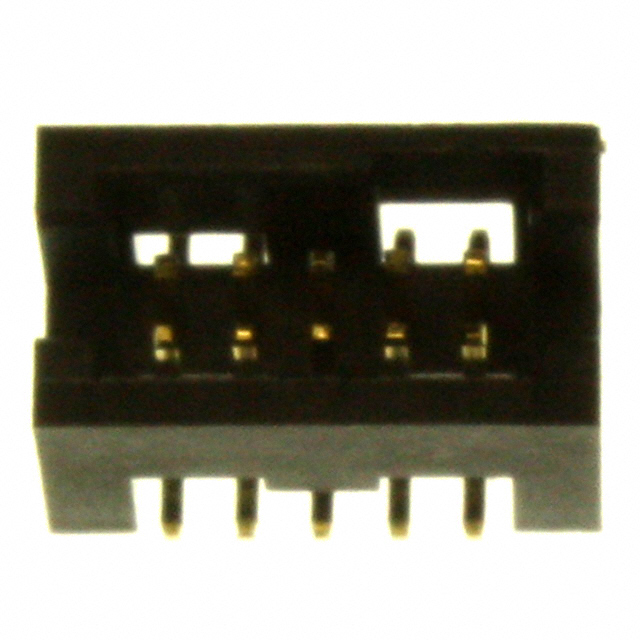

SBH31-NBPB-D05-SP-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBH31-NBPB-D05-SP-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBH31-NBPB-D05-SP-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBH31-NBPB-D05-SP-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HDR 1.27MM 10POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.415 | $0.365 | $0.315 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.258 | $0.229 | $0.207 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBH31-NBPB-D05-SP-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR 1.27MM 10POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94716 pcs | Data sheet | S(B,F)H31 Series Catalog Page |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | SBH31 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | S9103 SBH31NBPBD05SPBK |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6mm | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.213" (5.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
