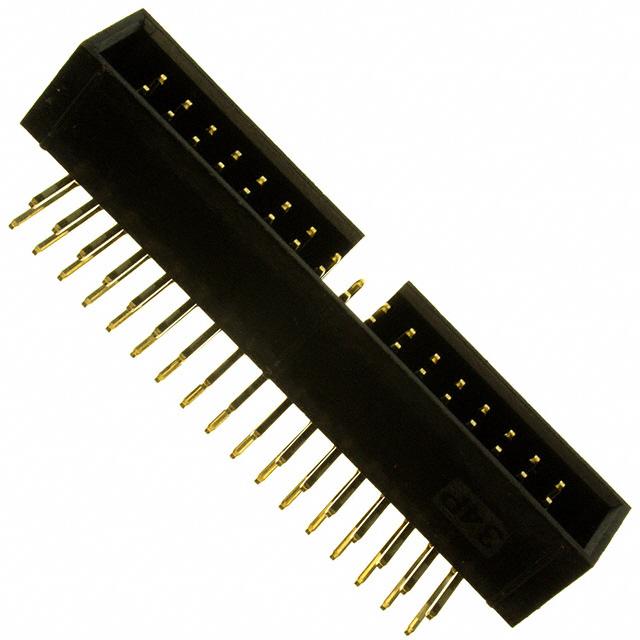

SBH11-PBPC-D17-RA-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBH11-PBPC-D17-RA-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBH11-PBPC-D17-RA-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBH11-PBPC-D17-RA-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADR 2.54MM 34POS GOLD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.429 | $0.376 | $0.324 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.265 | $0.236 | $0.213 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBH11-PBPC-D17-RA-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADR 2.54MM 34POS GOLD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90640 pcs | Data sheet | SBH11 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | SBH11 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | S9182 SBH11PBPCD17RABK |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.358" (9.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
