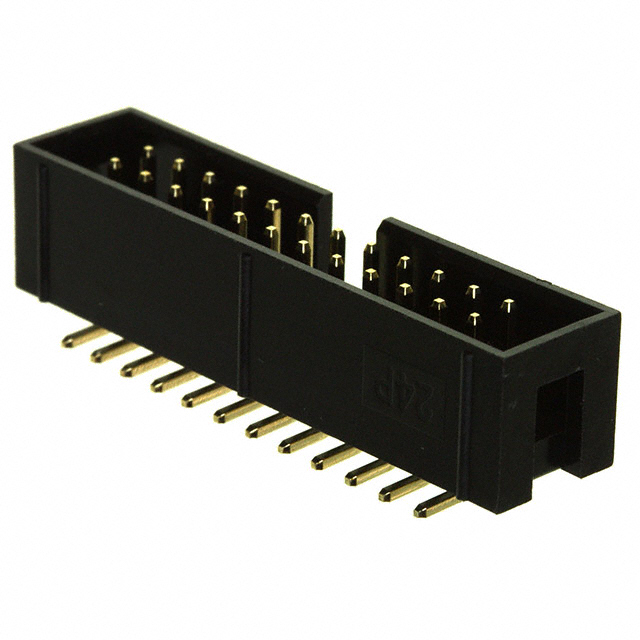

SBH11-NBPC-D12-SM-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBH11-NBPC-D12-SM-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBH11-NBPC-D12-SM-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SBH11-NBPC-D12-SM-BK |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADR 2.54MM 24POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.493 | $0.448 | $0.384 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.32 | $0.274 | $0.264 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SBH11-NBPC-D12-SM-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADR 2.54MM 24POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90007 pcs | Data sheet | SBH11 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | SBH11 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | S9189 SBH11NBPCD12SMBK |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.17mm, 12.72mm, 14.87mm, 19.87mm | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.358" (9.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 24 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
