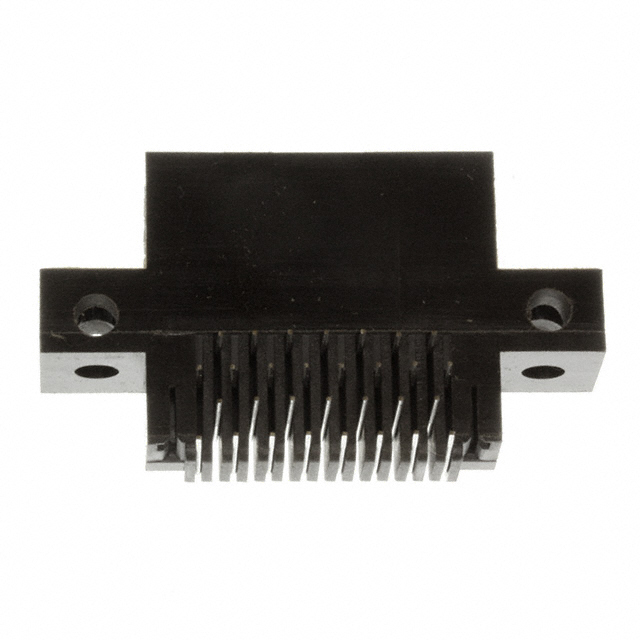

RZB15DHAS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RZB15DHAS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RZB15DHAS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RZB15DHAS |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 30POS 0.050 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RZB15DHAS | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 30POS 0.050 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4493 pcs | Data sheet | xxBxxDHxx (DHA, DHB) Drawing |
| Category | Connectors, Interconnects | Termination | Solder, Staggered |
| Series | - | Read Out | Dual |
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Other Names | S3245 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 15 |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Material - Insulation | Polyphenylene Sulfide (PPS) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Gender | Female | Flange Feature | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Features | - | Contact Type | Hairpin Bellows |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
