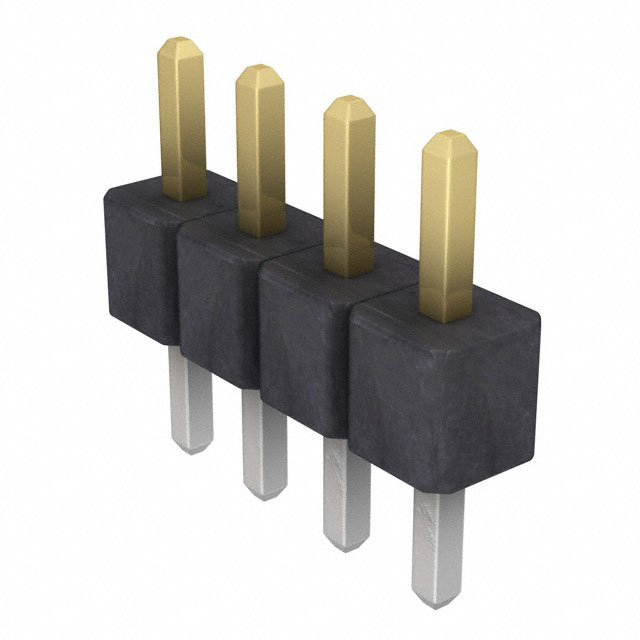

PZC04SZAN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PZC04SZAN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PZC04SZAN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PZC04SZAN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 4POS .100 SGL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PZC04SZAN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 4POS .100 SGL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5184 pcs | Data sheet | Square Post Header |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.340" (8.64mm) |
| Other Names | S1083-04 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic, Polyester |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
