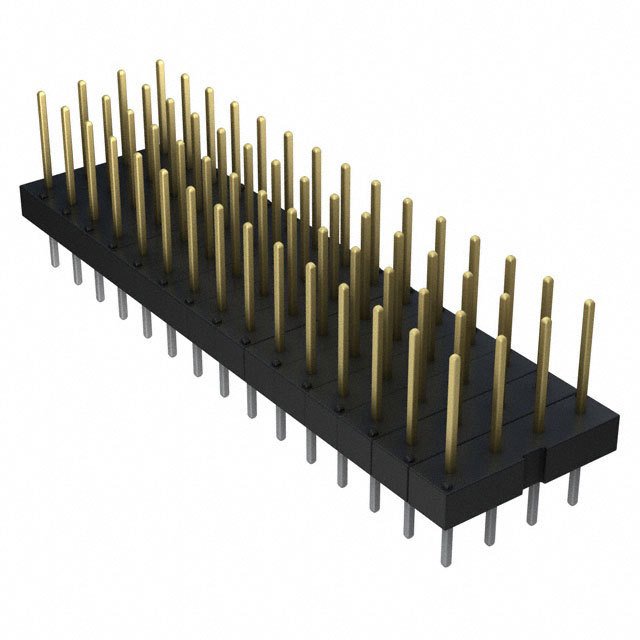

PRPN154RCCN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRPN154RCCN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRPN154RCCN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRPN154RCCN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 2MM QUAD STR 60POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PRPN154RCCN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 2MM QUAD STR 60POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4278 pcs | Data sheet | PRPNxx4RCCN DrawingxPPN(01-40)zzzN-RC Selection Guide |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.328" (8.32mm) |
| Other Names | S2401-15 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 60 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.094" (2.40mm) | Contact Length - Mating | 0.173" (4.40mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
