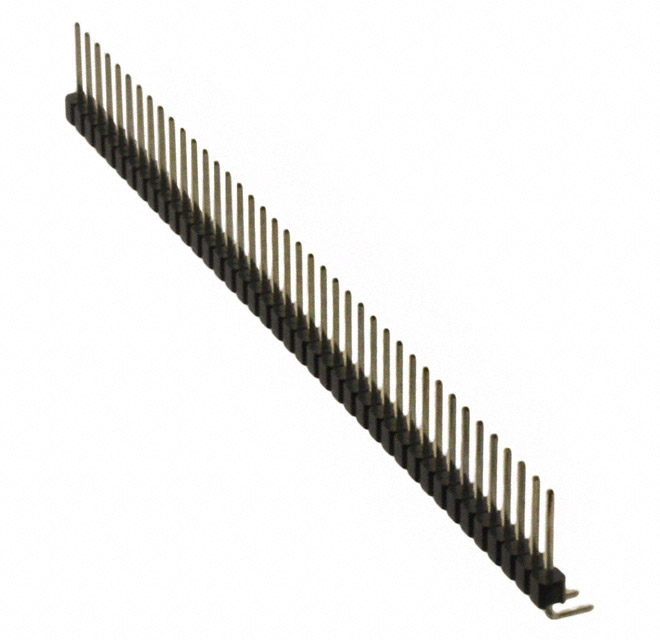

PRPC040SGAN-M71RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRPC040SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRPC040SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRPC040SGAN-M71RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100" SNGL R/A 40POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.356 | $0.318 | $0.262 | $0.207 | $0.18 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PRPC040SGAN-M71RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL R/A 40POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109437 pcs | Data sheet | zzzCzzzSzzN-M71RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | PRPC040SGANM71RC S1311EC-40 S9515E-40 S9515E-40-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm) |
| Current Rating | 3A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
