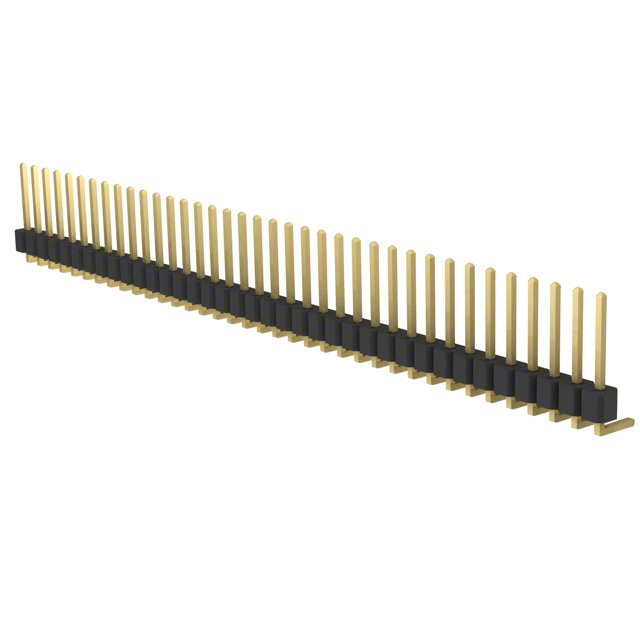

PRPC037SGAN-M71RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRPC037SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRPC037SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRPC037SGAN-M71RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100" SNGL R/A 37POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.385 | $0.344 | $0.284 | $0.224 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.193 | $0.176 | $0.169 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PRPC037SGAN-M71RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL R/A 37POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 112642 pcs | Data sheet | zzzCzzzSzzN-M71RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | S1311EC-37 S9515E-37 S9515E-37-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 37 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.098" (2.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 37 position 0.100" (2.54mm) | Current Rating | 3A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
