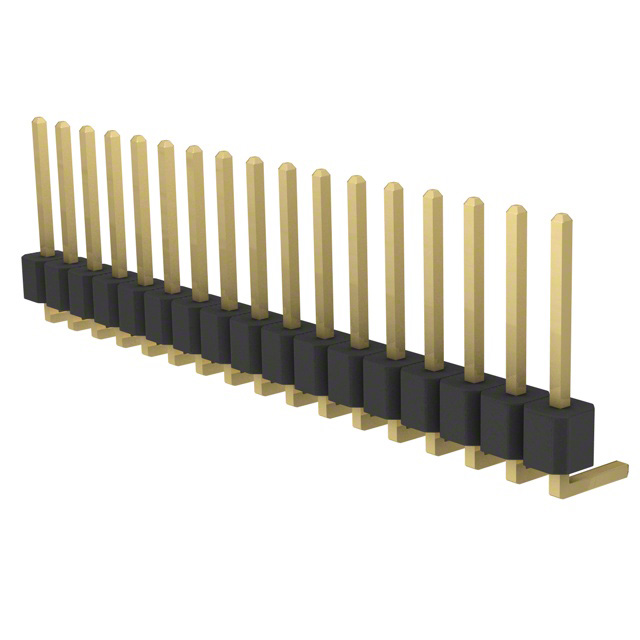

PRPC017SGAN-M71RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRPC017SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRPC017SGAN-M71RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRPC017SGAN-M71RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100" SNGL R/A 17POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.212 | $0.19 | $0.157 | $0.124 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.106 | $0.097 | $0.093 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PRPC017SGAN-M71RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL R/A 17POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 205217 pcs | Data sheet | zzzCzzzSzzN-M71RC Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Brass |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | - | Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.120" (3.05mm) |
| Other Names | S9515E-17 S9515E-17-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions | 17 |
| Number of Contacts | Flash | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | PRPC017SGAN-M71RC |
| Length - Post (Mating) | - | Insulation Material | Gold |
| Insulation Height | - | Features | - |
| Expanded Description | 17 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Gold | Description | CONN HEADER .100" SNGL R/A 17POS |
| Current Rating | 3A per Contact | Current - Max/Contact | - |
| Contact Length - Post | 0.318" (8.08mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | Flash | Contact Finish - Mating | 0.098" (2.50mm) |
| Connector Type | Header, Breakaway | Actual Diameter | Black |
