PPTC301LFBN-RC

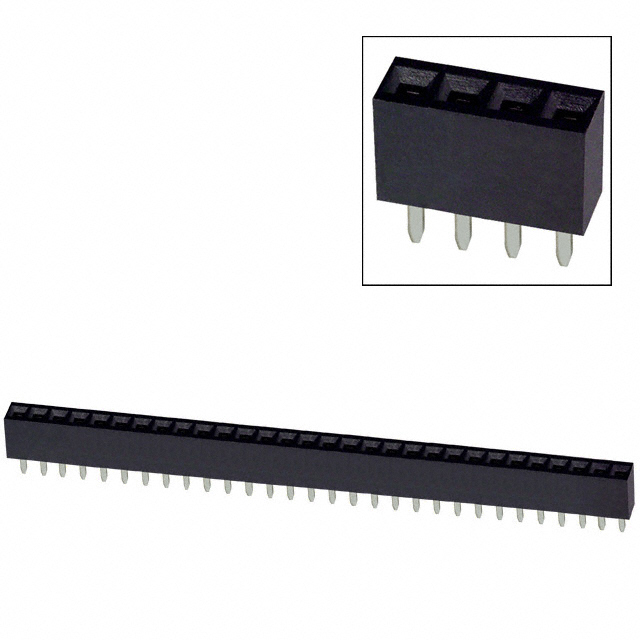

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PPTC301LFBN-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PPTC301LFBN-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PPTC301LFBN-RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER FEMALE 30POS.1" TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.623 | $0.564 | $0.483 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.403 | $0.345 | $0.333 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PPTC301LFBN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER FEMALE 30POS.1" TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68250 pcs | Data sheet | Female Headers .100" Data SheetxPxCyyyLFBN-RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | PPTC301LFBNRC S7028 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 30 Position Header Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
