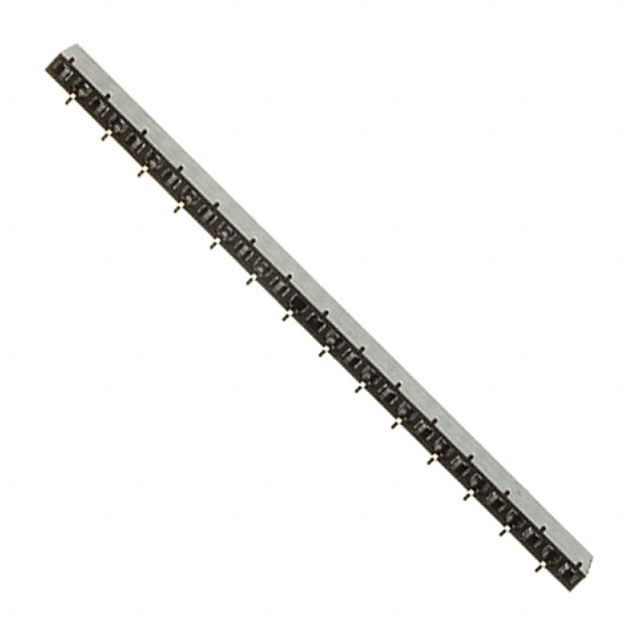

PPTC291KFXC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PPTC291KFXC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PPTC291KFXC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PPTC291KFXC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN FEMALE 29POS .1" SMD TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PPTC291KFXC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN FEMALE 29POS .1" SMD TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4795 pcs | Data sheet | PPxCxx1KFXC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | S4520 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 29 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester |
| Insulation Height | 0.280" (7.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 29 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Top or Bottom Entry |
| Applications | - |
