PEC30DACN

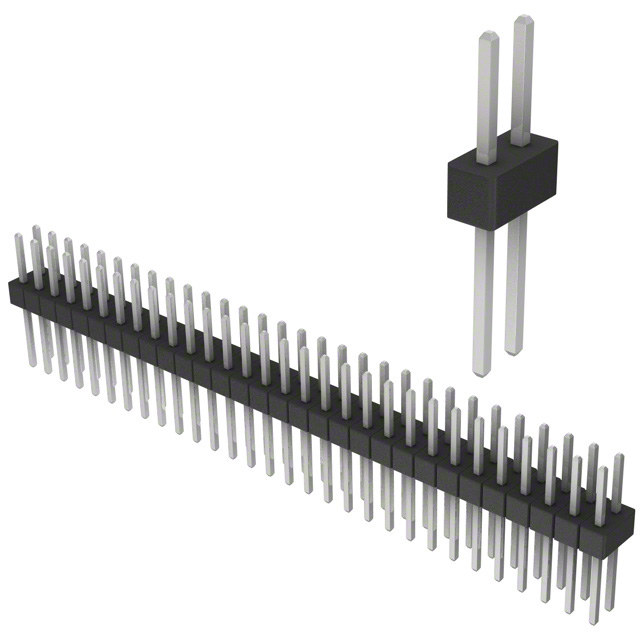

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEC30DACN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PEC30DACN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PEC30DACN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100 DUAL STR 60POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.808 | $1.617 | $1.332 | $1.053 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.904 | $0.824 | $0.793 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PEC30DACN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL STR 60POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41780 pcs | Data sheet | Male HDR .100"(2.54mm) DatasheetPxCxxDxxN Datasheet, Straight |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board or Cable | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | - | Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.320" (8.13mm) |
| Other Names | S2032E-30 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 60 |
| Number of Contacts | 100µin (2.54µm) | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Part Number | PEC30DACN | Length - Post (Mating) | - |
| Insulation Material | Tin | Insulation Height | 0.650" (16.51mm) |
| Features | - | Expanded Description | 60 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole Tin |
| Description | CONN HEADER .100 DUAL STR 60POS | Current Rating | 3A |
| Current - Max/Contact | - | Contact Length - Post | 0.230" (5.84mm) |
| Contact Length - Mating | 0.100" (2.54mm) | Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) |
| Contact Finish Thickness - Mating | Tin | Contact Finish - Post | 100µin (2.54µm) |
| Contact Finish - Mating | 0.100" (2.54mm) | Connector Type | Header, Breakaway |
| Actual Diameter | Black |
