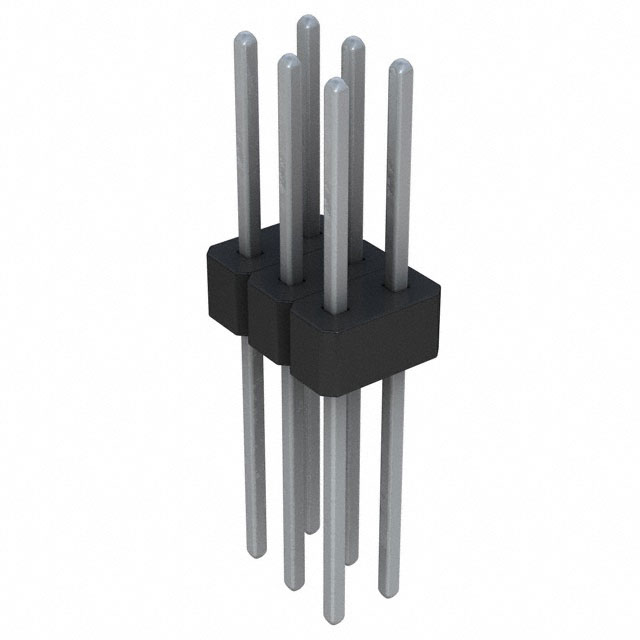

PEC03DFDN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEC03DFDN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PEC03DFDN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PEC03DFDN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .100 DUAL STR 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.93 | $0.834 | $0.687 | $0.543 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.466 | $0.425 | $0.409 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PEC03DFDN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL STR 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86804 pcs | Data sheet | .100" Headers DatasheetxxCxxDxxN Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.838" (21.29mm) |
| Other Names | S2242E-03 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.420" (10.67mm) | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Breakaway | Applications | - |
