NRPN121PAEN-RC

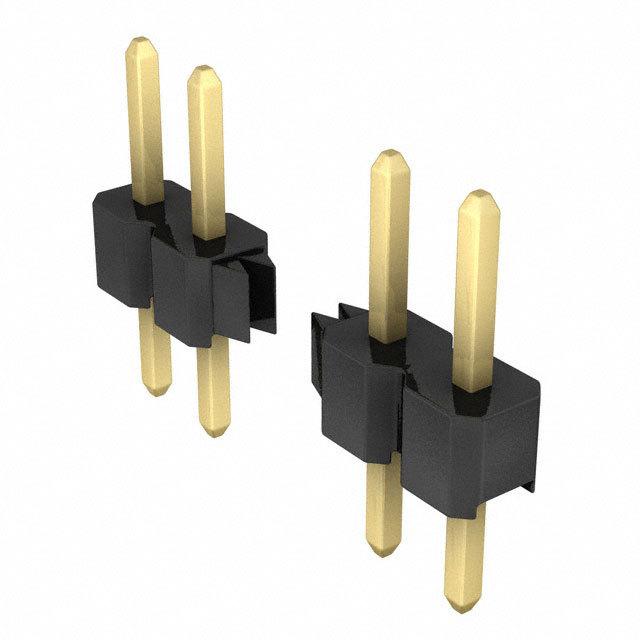

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NRPN121PAEN-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NRPN121PAEN-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NRPN121PAEN-RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 2MM SINGLE STR 12POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.23 | $0.201 | $0.17 | $0.135 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.11 | $0.10 | $0.097 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NRPN121PAEN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 2MM SINGLE STR 12POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 202248 pcs | Data sheet | NRPNxx1PAEN-RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.331" (8.40mm) |
| Other Names | PRPN121PAEN-RC S5800-12 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
