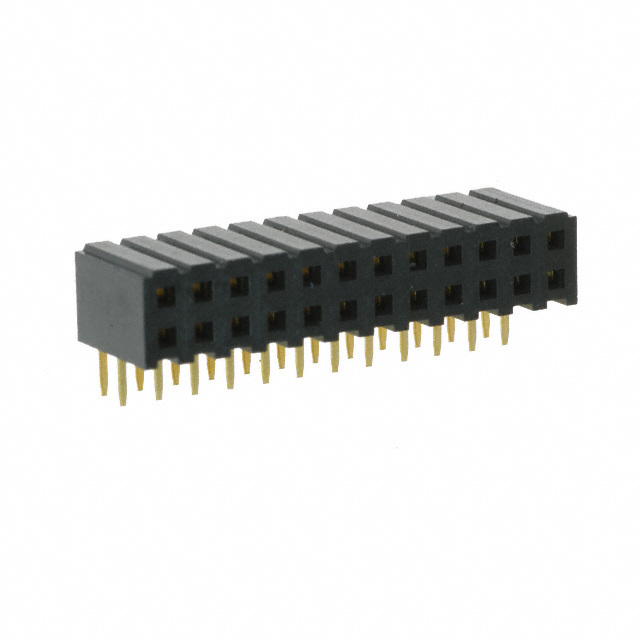

NPPN122FJFN-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NPPN122FJFN-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NPPN122FJFN-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NPPN122FJFN-RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN RECEPT 2MM DUAL R/A 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.981 | $0.942 | $0.785 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.667 | $0.569 | $0.567 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NPPN122FJFN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN RECEPT 2MM DUAL R/A 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52557 pcs | Data sheet | NPxNxx2FJFN-RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | - | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | NPPN122FJFNRC PPPN122FJFN-RC S5753-12 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.191" (4.85mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 24 Position Header Connector 0.079" (2.00mm) Through Hole, Right Angle Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
