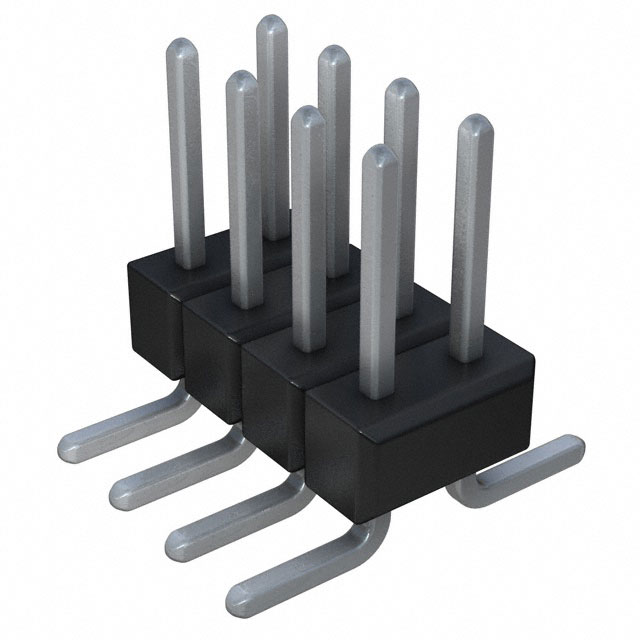

GTC08DABN-M30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GTC08DABN-M30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GTC08DABN-M30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GTC08DABN-M30 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 16POS .100 DL SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | GTC08DABN-M30 | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 16POS .100 DL SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5369 pcs | Data sheet | GxCxxDxxN-M30 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | S2331-08 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 16 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
