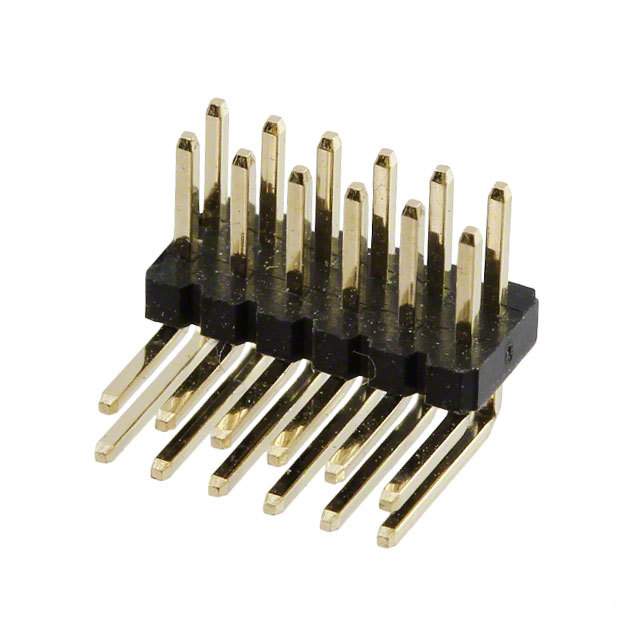

GRPB062MWCN-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GRPB062MWCN-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GRPB062MWCN-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GRPB062MWCN-RC |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER .05" 12PS DL PCB R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.42 | $0.37 | $0.319 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.261 | $0.232 | $0.21 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | GRPB062MWCN-RC | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .05" 12PS DL PCB R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92701 pcs | Data sheet | Male Headers .050" Data SheetGRPBxx2MWCN-RC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | GRPB062MWCNRC S9017E-06 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.134" (3.40mm) | Insulation Color | - |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.098" (2.50mm) | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
