GBC10DFBN-M30

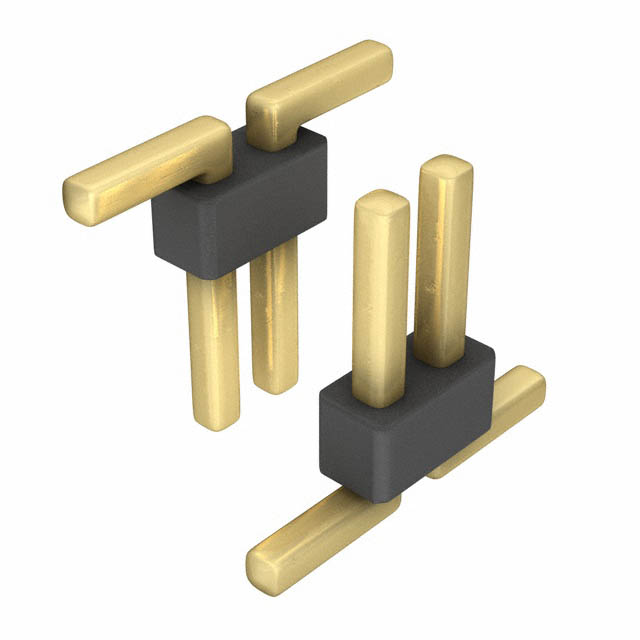

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GBC10DFBN-M30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GBC10DFBN-M30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GBC10DFBN-M30 |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER 20POS .100 DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.202 | $1.076 | $0.886 | $0.70 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.601 | $0.548 | $0.527 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | GBC10DFBN-M30 | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 20POS .100 DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73389 pcs | Data sheet | .100" Headers DatasheetGxCxxDABN-M30 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | S2361E-10 | Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
