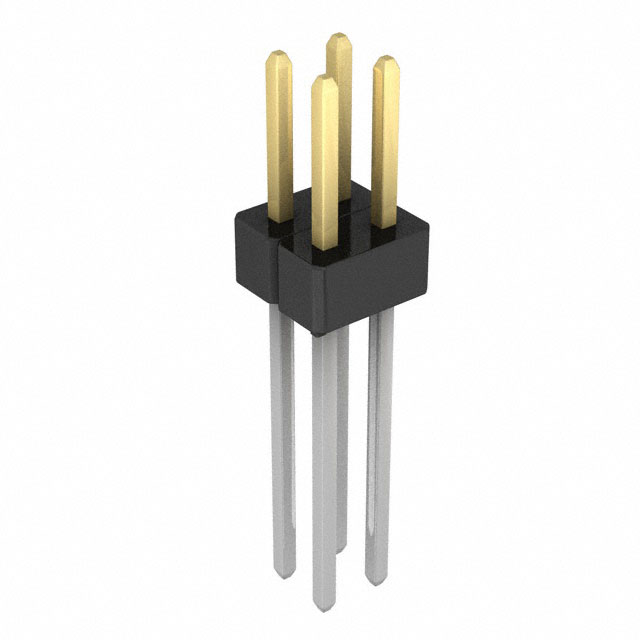

GBC02DAEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GBC02DAEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GBC02DAEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GBC02DAEN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HDR VERT 4POS .100" GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.169 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | GBC02DAEN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR VERT 4POS .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 119744 pcs | Data sheet | .100" Headers DatasheetxxCxxDxxN Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.850" (21.59mm) |
| Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.520" (13.21mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
