ECM14MMND

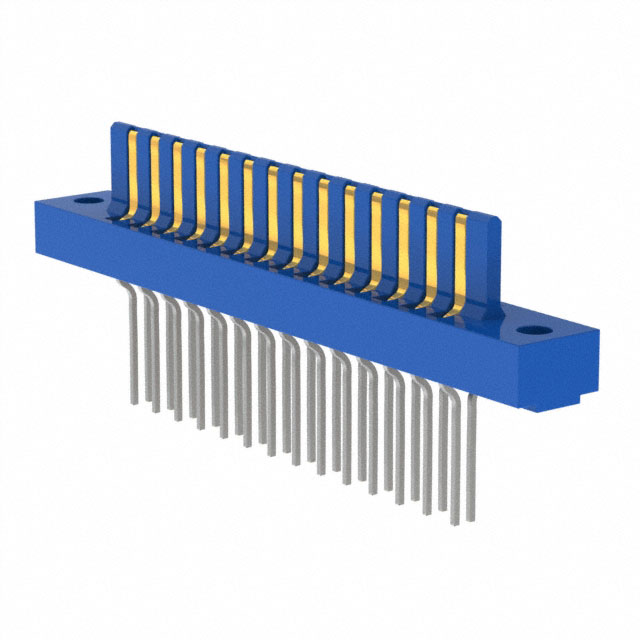

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECM14MMND with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECM14MMND with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECM14MMND |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN CARDEDGE MALE 28POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $2.245 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECM14MMND | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN CARDEDGE MALE 28POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15005 pcs | Data sheet | xxMxxMzzz (MR,MN) Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Tray |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions/Bay/Row | 14 | Number of Positions | 28 |
| Mounting Type | Board Edge, Straddle Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Male |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | Features | Card Extender |
| Contact Type | - | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | - | Card Type | Fits Female Edgecards |
| Card Thickness | 0.062" (1.57mm) |
