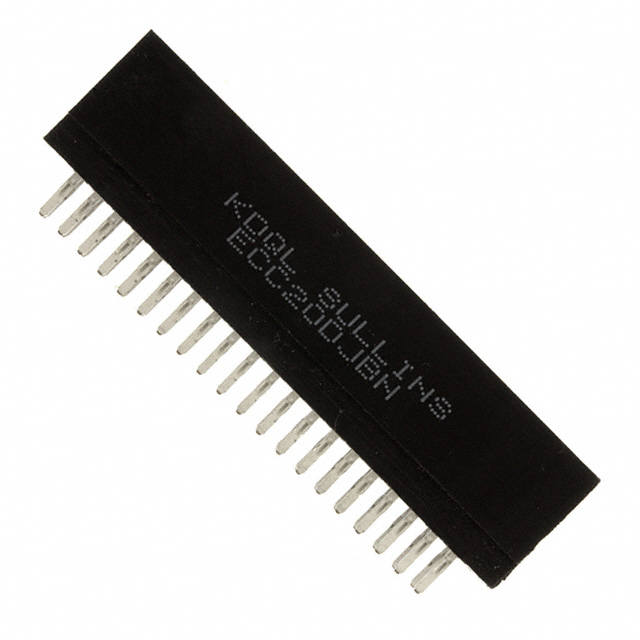

ECC20DJBN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECC20DJBN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECC20DJBN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECC20DJBN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 40POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.929 | $2.802 | $2.547 | $2.42 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECC20DJBN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 40POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14310 pcs | Data sheet | Edgecards .100 in Data SheetECCxxDxxN/-S1136 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Series | - | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | S7270 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 20 |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Material - Insulation | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | - |
| Contact Type | - | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Black | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
