EBM22DRXH

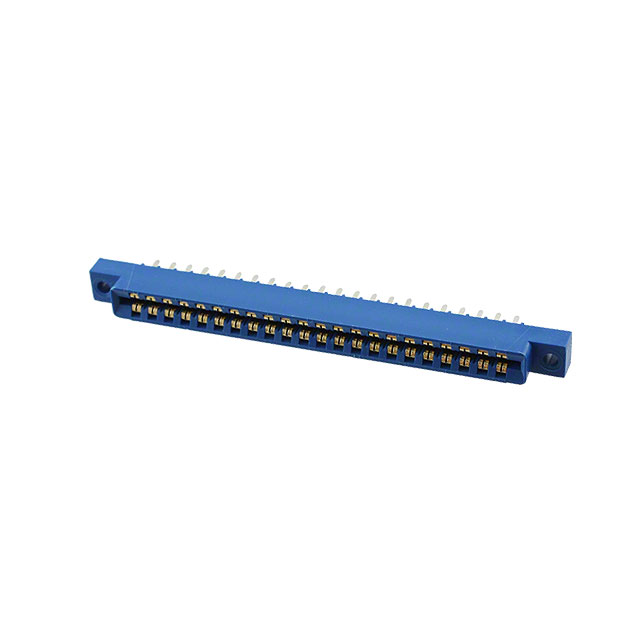

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EBM22DRXH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EBM22DRXH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EBM22DRXH |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 44POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.977 | $1.894 | $1.729 | $1.647 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.565 | $1.40 | $1.338 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EBM22DRXH | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 44POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26610 pcs | Data sheet | xxMxxDRxx DrawingEdgecards .156 in Data Sheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | S3353 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 22 |
| Number of Positions | 44 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Features | - | Contact Type | Full Bellows |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Blue |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
