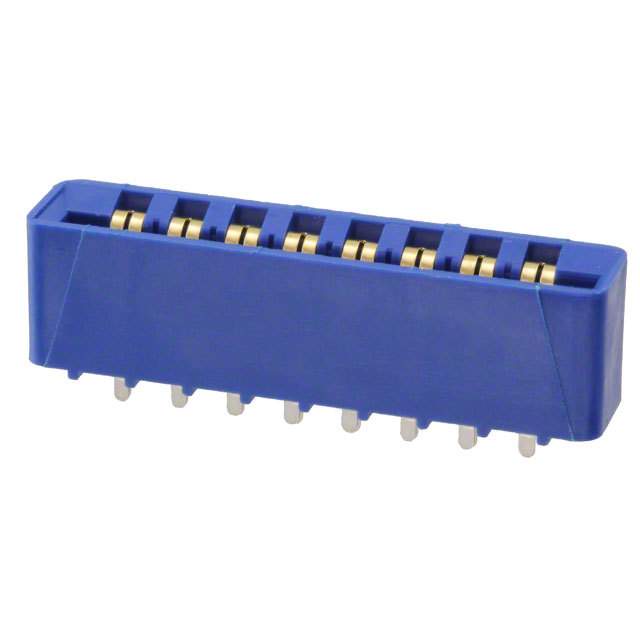

EBM08DSXN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EBM08DSXN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EBM08DSXN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EBM08DSXN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 16POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.31 | $1.257 | $1.152 | $1.10 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.048 | $0.917 | $0.891 | $0.851 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EBM08DSXN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 16POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46101 pcs | Data sheet | xxMxxDSXx DrawingEdgecards .156 in Data Sheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Single |
| Pitch | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | EBM08DSXN-ND S9676 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 8 |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Material - Insulation | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | - | Features | - |
| Contact Type | Full Bellows | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Color | Blue | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
