Home > Products > Connectors, Interconnects > Card Edge Connectors - Edgeboard Connectors > EBC70DCWN

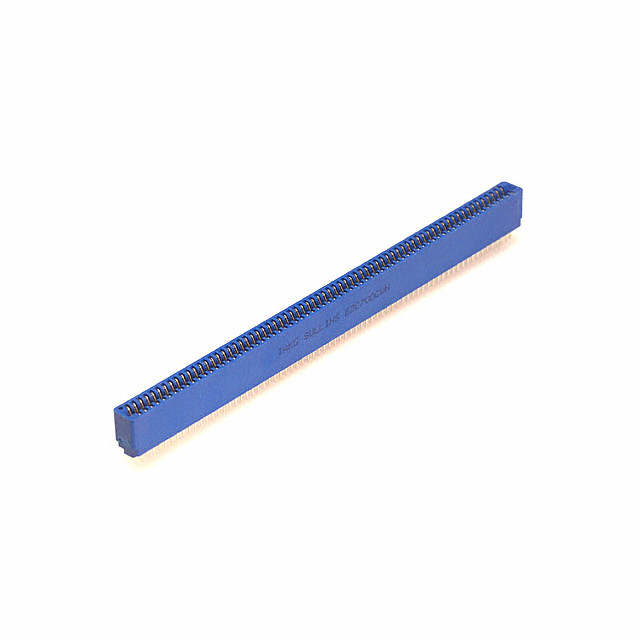

EBC70DCWN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EBC70DCWN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EBC70DCWN
Manufacturer	Sullins Connector Solutions
Description	CONN EDGE DUAL FMALE 140POS .100
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 10119 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$3.394

Product parameter
Data sheet

Product parameter

Part Number	EBC70DCWN	Manufacturer	Sullins Connector Solutions
Description	CONN EDGE DUAL FMALE 140POS .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10119 pcs	Data sheet	Female Card Edge
Category	Connectors, Interconnects	Termination	Solder
Series	-	Read Out	Dual
Pitch	0.100" (2.54mm)	Packaging	Tray
Operating Temperature	-65°C ~ 125°C	Number of Rows	2
Number of Positions/Bay/Row	70	Number of Positions	140
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Material - Insulation	Polybutylene Terephthalate (PBT)	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	-	Features	-
Contact Type	Hairpin Bellows	Contact Material	Phosphor Bronze
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Color	Blue	Card Type	Non Specified - Dual Edge
Card Thickness	0.062" (1.57mm)
