EBC18DRXH

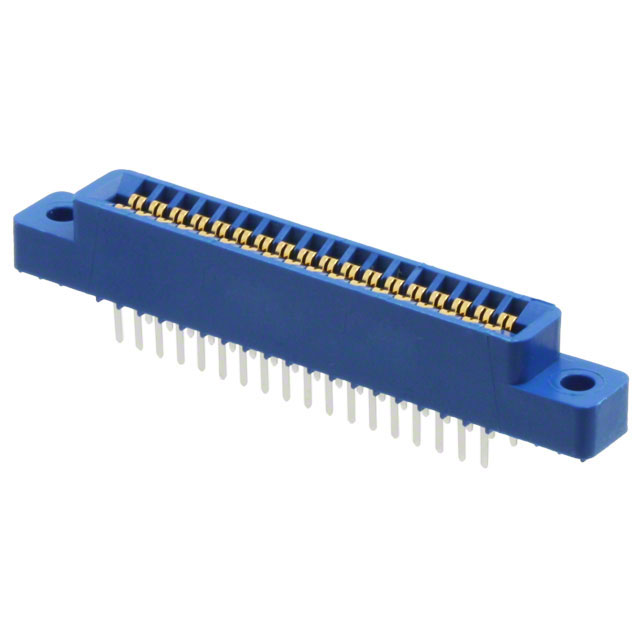

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EBC18DRXH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EBC18DRXH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EBC18DRXH |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 36POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.704 | $1.635 | $1.499 | $1.431 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.363 | $1.193 | $1.158 | $1.107 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EBC18DRXH | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 36POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31530 pcs | Data sheet | .100” [2.54 mm]xxCxxDRXx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | S3313 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 18 |
| Number of Positions | 36 | Mounting Type | Through Hole |
| Material - Insulation | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Features | - |
| Contact Type | Full Bellows | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Color | Blue | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
